FIBERSAW® : High Speed Laser Tube and pipe Cutting Machine
Nobody cut faster and cheaper tubes and pipes than our FiberSaw®!
High speed tube Cutting Machine - High speed pipe Cutting Machine:
Tube Cutting solutions with high productivity and low working Cost
FIBERSAW®: HIGH SPEED FIBER LASER SAWING MACHINE
⇒ Fastest TUBE and pipe sawing machine in the world!
⇒ NEW for EUROPE
⇒ Lowest cost per cut available on the market.
⇒ Sawing WITHOUT sawblades
⇒ No Tooling cost
⇒ ZERO SET-UP TIME
⇒ With optional de-dust (slag removal) function
⇒ With optional deburr function
⇒ With optional chamfering function
With our FIBERSAW® Series, we let ALL other tube sawing machine far behind us!
Fibersaw: high-performance pipe sawing system
Fibersaw F42: sample of High Speed Laser Tube SAWING
Diameter: ø24mm
Wall thickness: 2,4 mm
Tube lenght: 328mm
Soft Steel
TAKT Time = 1,78 sec
>2000 pieces/hour
including last part push out and first part cut-off
FIBERSAW®: REDUCING DRASTICALLY WASTE MATERIAL AND ENERGY CONSUMPTION
Nobody can beat FIBERSAW® in saving material or saving energy.
-
With our high efficiency Fiber laser we consume only during some fraction of seconds cutting power, while a sawing machine with a sawblade has a 4-6 kW sawing motor continiouly running at full power. Our FIBERSAW® consumes minimal 70% less energy than any regular high speed sawing machine!
-
We have the smallest cutting GAP from all sawing machines = 0,1 to 0,2 mm max. While a normal sawing machine has a loss of matrial of 2 to 3 mm for each cut.
-
example: A sawing machine with special thin sawblade of 2,4 mm gets only 185 parts of 30 mm out of a tube of 6000 mm while we get with our FIBERSAW® 198 parts out of 6000 mm tube: Our FIBERSAW® produces 7% more parts than any other sawing machine!
-
-
The rest part (last crop) can be easily less than 40 mm, where many other Sawing machine makers AND tube laser cutting machines makers have a loss of 180 to 300 mm for each tube.
-
FIBERSAW® guarantees the shortes losses at the end of the tube between all sawing machines!
-
-
The first crop is is less than 10 mm : saving extra material
-
LESS than 1% material loss
A FIBERSAW® machine cuts tubes faster, more economical, saving more material and energy.
FIBERSAW®produces much cheaper than ANY other tube cutting machine.
FIBERSAW®
SUPER HIGH SPEED
Round Tube Cutting
Round Tube Sawing
Round Tube Trimming
MAX Ø: 119mm Round
FIBERSAW® ULTRA
Super High Speed
Tube and pipe cutting
round and square
MAX Ø: 82mm Round
MAX ♦: 60x60mm Square
Real 3D Tube cutting
High-quality bevel cuts
Real 3D tube cutting
Real 3D pipe cutting
MAX Ø: 320mm Round
Tube cutting performance
The High Tensile Steel Tube is now widely applied in the global automotive market. In order to achieve higher fuel efficiency and lowering materials costs, thicker tubes and solid bars have been replaced by thin wall High Tensile tubes, which offer lower weight without compromising in strength and safety. With a much higher tensile strength (80~120 Kg/cm²) than conventional steels (40~50 Kg/cm²), this material is highly employed in key areas of cars in for structural (chassis) applications and impact protection.
The new lasermach Fibersaw Series tube cutting line brings you the latest technology in High Tensile Steel Tube Sawing. Its unique design and cutting system brings the lowest cutting cost in such applications, as well as unparalleled performance and the highest speed on the market. Laser cutting technology has risen to the top of the line of metal cutting methods. The precision and versatility the technology of laser cutting offers, causes it to standout as the fastest and most economical and ecological way of cutting metals.
Super High Speed Laser ROUND Tube Cutting Machines
FIBERSAW Series : ROUND Tube Cutting - Tube Trimming - Tube Notching
FIBERSAW F42 Series
Small Round Tube Laser cutting Machine
ROUND TUBE MAX Ø 40mm
High speed Sawing
High Speed Cutting
High Speed Trimming

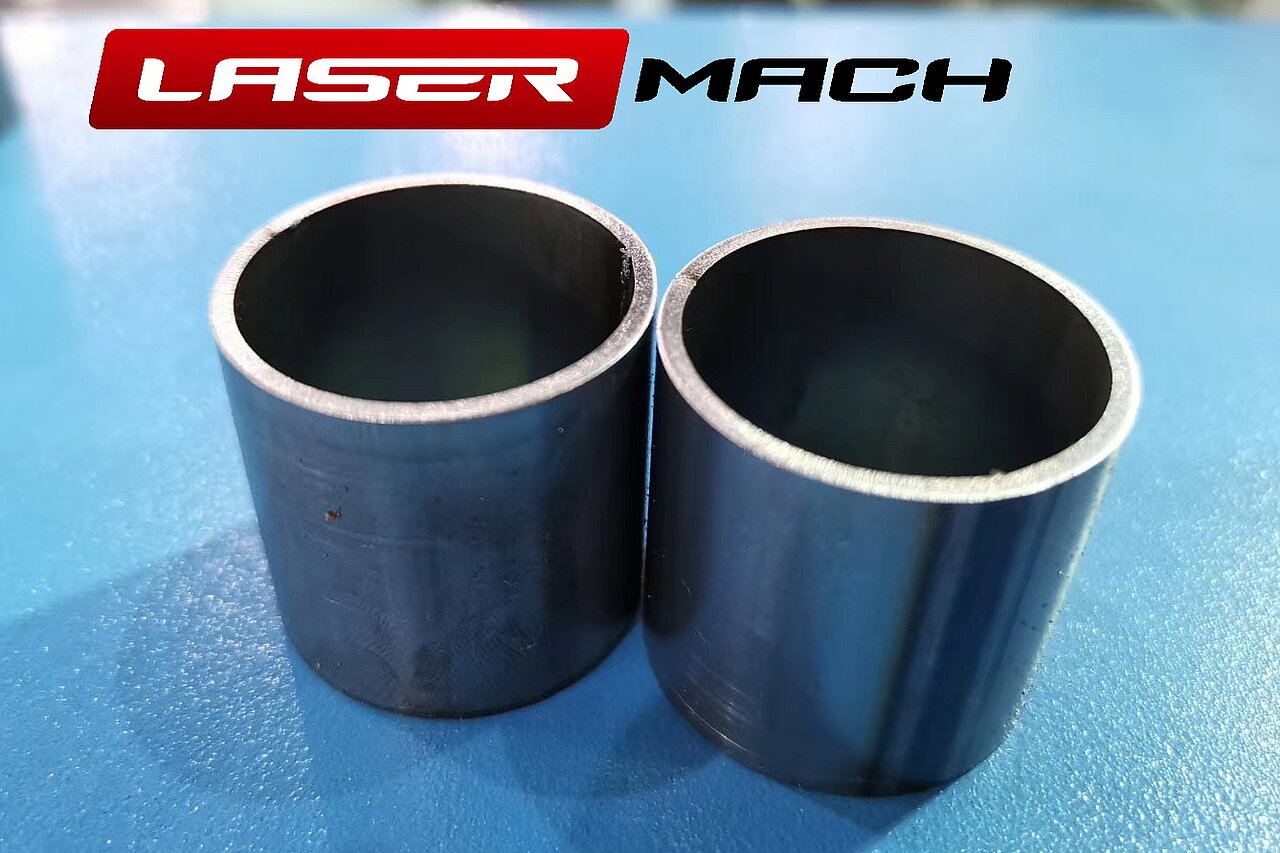

FIBERSAW F120 Series
Round Tube Laser cutting Machine
ROUND TUBE MAX Ø 120mm
High speed Sawing
High Speed Cutting
High Speed Trimming
ULTRA High Speed Laser Tube Cutting Machines
FIBERSAW ULTRA Series : Round + Square + oval Tube Cutting - Tube Trimming - Tube Notching
FS60-ULTRA - Super High speed tube cutting machine
High speed 2.5d tube cutting, notching, trimming and sawing
High speed SQUARE - ROUND - OVAL - RECTANGULAR Tube Sawing Machines
ROUND TUBE
SQUARE TUBE
OVAL TUBE
RECTANGULAR TUBE
FIBERSAW Special laser Cutting Machines
Fiber Laser Elbow cutting machine - Fiber laser inline tube cutting machine - on the fly laser tube cutting machine
FIBERSAW-ELBOW
Tube Elbow - T - + Cutting machine
FIBERSAW-FLY
In-Line laser tube cutting machine
FIBERSAW High speed laser cutting Machines for Tubes
New Website under construction
NEW Website for high speed tube cutting with light!
We are working hard to bring you a new website special build-up for tube and pipe cutting.
Please have some patience we are working hard on the new design
FIBERSAW
Make you forget about sawing Machines
LOWEST Maintenance and cutting cost in the market!!
NO SAWBLADES !
NO SAWBLADES TO REGRIND!
NO STOPPING TO CHANGE SAWBLADE
NEVER TO CHANGE SAWBLADES FOR OTHER MATERIAL OR OTHER DIMENSIONS
NO CHIPS TO CLEAN
NO COOLANT TO FILL
ONLY ONE SETUP FOR ALL MATERILAS AND ALL DIAMETERS
Lifetime of laser SOURCE > 100.000 HOURS
> More than 10 years non-stop cutting without problems!

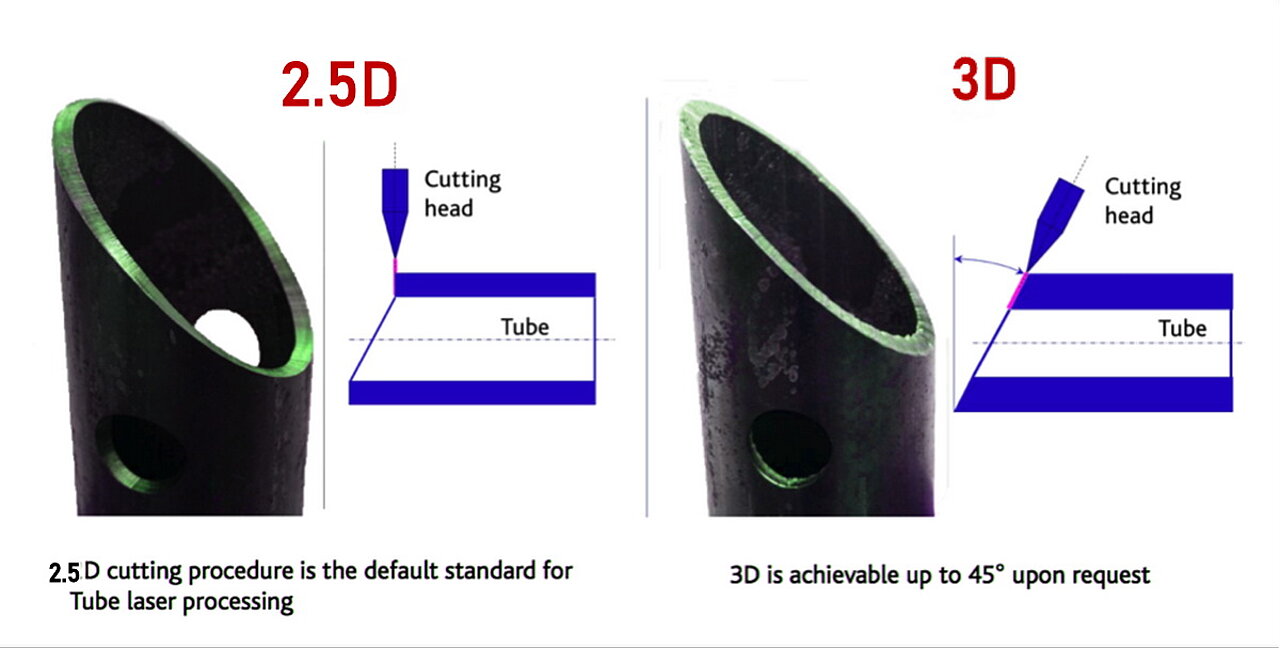

Real 3d Laser Tube cutting Machine
5 Axis Laser tube cutting machines for real 3D parts with bevel cut till +-135°
Lasermach LFT 3th Generation 3D Tube cutting Machines
3D laser Tube Cutting with a perfect Fit till +-135° bevel cut
LFTIII-3D-E Serie
Entry Level Machine for small and mediem series + Prototypes
LFTIII-3D-HD Serie
Heavy Duty Series
LFTIII-3D-HSP Serie
High Speed - High Precision Series
LFTIII-3D-ZERO Serie
ZERO LOSSES - 3 chuck tube laser
Why choose Lasermach LFT-III-3D Series?
-
Save time and reduce the number of components.
-
Reduce Material losses
-
Make tubular frames and metal structures that are more precise and faster to assemble.
-
Complete your part in one programming step, in one machining step, and on one system.
-
Tubes and pipes of any circular, rectangular, open or special cross-section as well as extrusions and profiles can be easily and economically cut!
